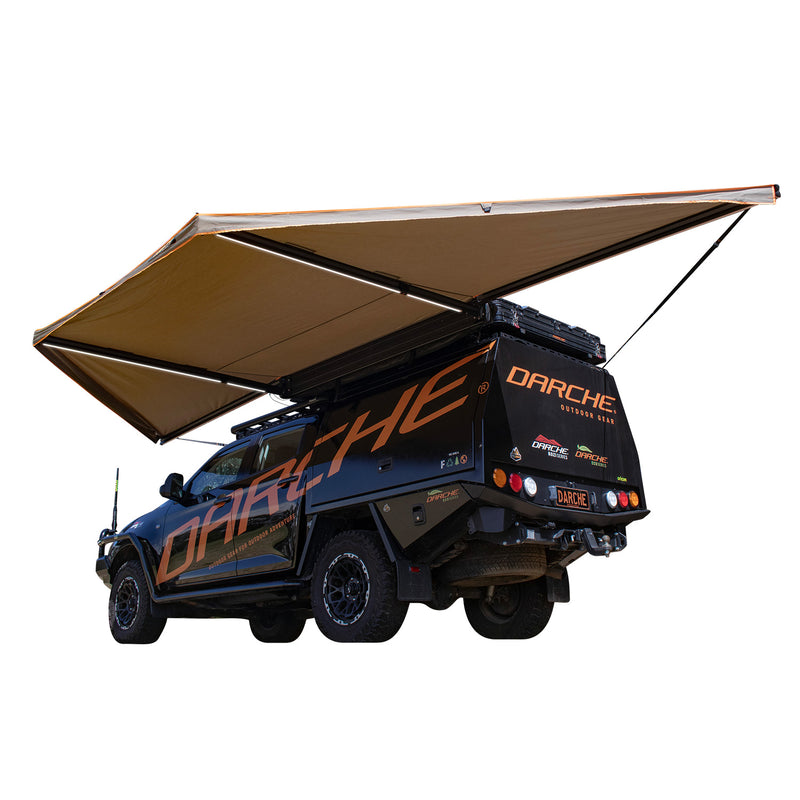

At DARCHE, we aim to ensure that our gear can stand up to the tough Australian environment. That’s why we have put the Eclipse 180 Freestanding LED Awning through a comprehensive 30-day wind-testing regimen, with everything from gentle breezes to severe gales being thrown at the awning.
In our testing, the Eclipse 180 Freestanding LED Awning held up in winds over 50km/hr, and even after being damaged I was able to repeat the same performance with repairs. We used the Omega OM-CP-WIND101A wind speed data logger system, calibrated with data from the Australian Bureau of Meteorology, to measure wind speeds every second during our testing. For more details on the wind meter, check it out here.
Based on results and observations gained over the wind testing period, the Eclipse 180 Freestanding LED Awning is rated up to 30km/hr winds whilst freestanding. However, our recommendation is that it you always deploy the included poles and tie down your awning properly using pegs and guy ropes as Mother Nature is unpredictable and we want to protect your investment.
Not only is the Eclipse 180 Freestanding LED Awning built to last, but it's also loaded with features that will raise your next outdoor adventure to the next level. There are dimmable LED strips neatly integrated into the rafter arms that also includes an amber setting to avoid attracting insects. The innovative two-piece backing plate design allows for a fully-enclosed transit cover, maximising weather resistance while still retaining the ability to easily move the awning from one vehicle to another. There are also 8mm sailtrack channels built into the backing plate, giving you the ability to attach a wide range of accessories to your awning.
If you are after even more protection from the elements, awning wall kits that increase coverage from 8.2 to 16.5 m2 are also available.
* Please note that if this awning is mounted to a roof top tent, the poles must be used at all times to avoid damaging your roof top tent.
* Ensure that your roof mounting system is fit for purpose. The supplied mounting brackets suit most commercially available roof racks or steel basket setups, however for some platform racks long brackets (T050801751B) may be required. For specific installation recommendations visit your local roof rack specialist.
- Over 2 years of development and testing
- Wind rated to 30 km/hr in freestanding mode
- 8.2m² of cover
- Fully-enclosed transit cover and two-piece backing plate design maximises weather resistance while still retaining the ability to easily move the awning from one vehicle to another
- Height-adjustable brackets suits a wide range of setup types
- X-tube aluminium alloy rafter arms, backing plate & hinges designed using state-of-the-art techniques & simulation for incredible strength & durability
- Integrated dual-colour (white and amber) dimmable LED lights on four rafter arms. (power bank not incl.)
- Additional height for headroom and water run off
- Heavy-duty 320gsm ripstop polycotton canvas with 3000mm waterhead rating
- All parts are designed to be replaceable for easy and low cost repair
- Compatible with rooftop tent awning bracket kits (T050801945 and T050801946, sold separately)
- Wall kits available (T050801744A and T050801744PV sold separately)
- Freestanding Wind Rating 30 km/hr
- Max. Head Height 2600mm
- Suits Vehicle Height 1400 to 2600mm
- Mount Type Side
- Fabric Material: 320gsm Ripstop Polycotton Canvas
- Frame Material: Extruded Aluminium Alloy
- Transit Cover Material: 820D Polyester Oxford
- Waterhead Rating 3000mm
- UPF Rating 50+
-
